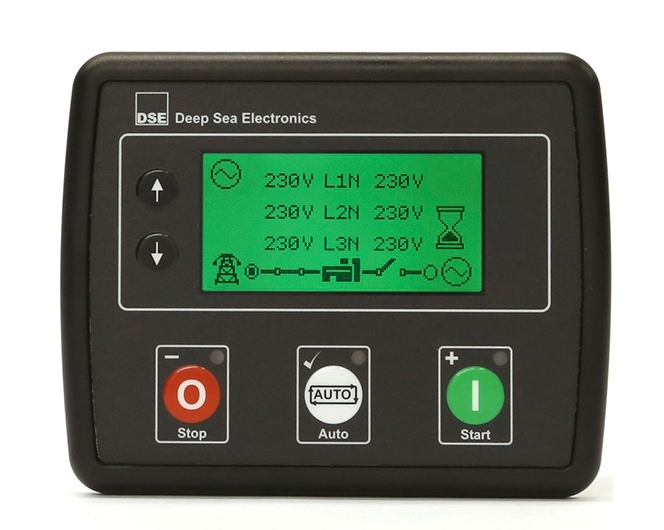

DSE4520 Generator Controller and the Deep Sea 4520 Auto Mains (Utility) Failure Control Module are versatile solutions for a wide range of single generator applications.
While maintaining the features found in higher-end controllers, such as generator or load power monitoring, the DSE45xx series offers an exceptionally compact design, providing an optimal size-to-feature ratio.
The DSE Generator Controller DSE4520 MKII monitors various parameters including engine speed, oil pressure, coolant temperature, frequency, voltage, current, power, and fuel level. These modules offer comprehensive protection for both engine and alternator, with warnings, electrical trip, and shutdown alarms displayed on the largest back-lit LCD icon display in its class.
MORE FEATURES
- Alternative configuration
- Engine maintenance alarms
- Power save mode.
- Largest back-lit icon display in its class
- Fully configurable via the fascia or PC using USB communication
- Extremely efficient power save mode
- 3-phase generator sensing
- 3-phase mains (utility) sensing (DSE4520 only)
- Generator/load power monitoring (kW, kVA, kVAr)
- Generator/load current monitoring and protection
- Fuel and crank outputs (configurable when using CAN)
- 4 configurable DC outputs (2 for DSE4510)
- 3 configurable analogue/digital inputs
- 4 configurable digital inputs
- Configurable staged loading outputs
- CAN and alternator speed sensing in one variant
- 3 engine maintenance alarms
- Engine speed protection
- Engine hours counter
- Engine pre-heat
- Engine run-time scheduler
- Battery voltage monitoring
- Start on low battery voltage
- Configurable remote start input
- 1 alternative configuration
- Comprehensive warning, electrical trip, or shutdown protection upon fault detection
- LCD alarm indication
- Event log (15)
